Aluminium Die Casting

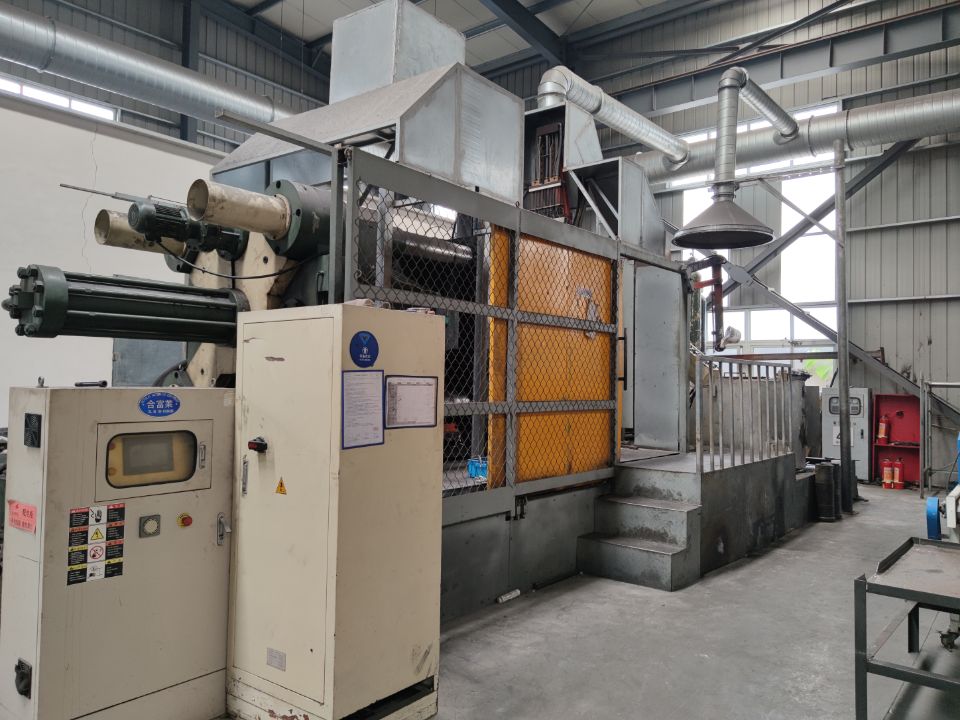

Wing, an aluminium die casting supplier that specializes in supplying precision die castings components. Through a manufacturing process, Teknicast is able to produce complex aluminium die casting parts, by utilizing our range of 135 tonnes to 840 tonnes 25 Cold Chamber high pressure die casting machines fitted with individual gas-fired furnaces achieving consistent high pressure die casting results.

Wing aims to produce the best complex aluminium die casting parts and components for our clients. With the implementation of the finest high pressure aluminium die casting process control via a team of professional workforce and meeting the requirements of our clients’ finishing standards is our main goal. Thus, Teknicast will always embed aluminium casting Malaysia in its name as the provider of high-quality finishing aluminium die casting components in the market. We have the capability to cast various aluminium specifications such as ADC12, A380, N14 and ALSi10MG(Fe).



Advantage

1. Good product quality: high dimensional accuracy of castings, generally equivalent to grade 6~7, or even up to grade 4; good surface finish, generally equivalent to grade 5~8; high strength and hardness, and the strength is generally 25 higher than that of sand casting. ~30%, but the elongation is reduced by about 70%; the dimensions are stable and the interchangeability is good; it can die-cast aluminum thin-walled and complex castings. For example, the minimum wall thickness of current zinc alloy die-casting aluminum parts can reach 0.3mm; aluminum alloy castings can reach 0.5mm; the minimum casting hole diameter is 0.7mm; the minimum pitch is 0.75mm.

2. High production efficiency: high machine productivity, for example, domestic JIII3 horizontal cold air die-casting aluminum machine can die-cast aluminum 600-700 times on average in eight hours, and small hot-chamber die-casting aluminum machine can die-cast aluminum 3000-7000 times on average every eight hours; Die-casting aluminum molds have a long service life. One pair of die-casting aluminum molds and die-casting aluminum bell alloys have a lifespan of hundreds of thousands or even millions of times; it is easy to realize mechanization and automation.

3. Excellent economic effect: due to the precise size of die-casting aluminum parts, the surface is smooth and clean. Generally, it is not used directly without mechanical processing, or the processing volume is very small, so it not only improves the metal utilization rate, but also reduces a large number of processing equipment and man-hours; castings are cheap; combined die-casting aluminum can be used to make other metal or non-metallic materials. . Saves both assembly man-hours and metal.
